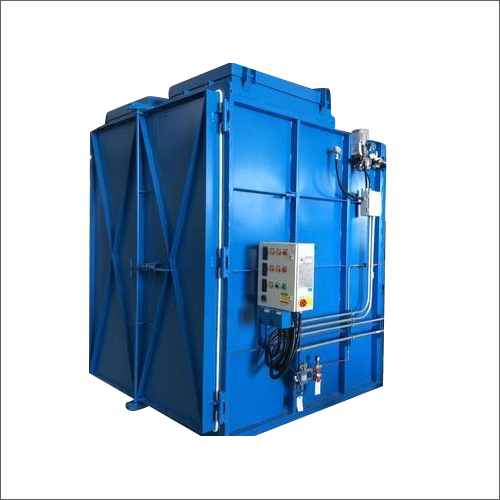

Industrial Box Furnace

About Industrial Box Furnace

We are engaged in offering Industrial Box Furnace. Our offered furnace is perfect for heat-treating, calcining, stress relieving, preheating, tempering, curing and annealing. Moreover, Industrial Box Furnace has uniform and rapid heating for quality and expeditious heat treatment. This furnace is made available in diverse specifications as per the needs of customers.

An industrial box furnace is a versatile, front-loading batch furnace used for high-temperature thermal processing, such as heat treating, sintering, and annealing. It consists of a rigid, refractory-lined chamber designed for uniform heating, with operating temperatures commonly reaching up to higher. These furnaces, such as those from Harrier Enterprises or International Thermal Systems, often feature electric resistance heating elements or gas-fired burners, PID temperature controllers, and robust insulation

• Structure: A rigid chamber (steel shell) lined with high-density fiber or refractory brick insulation to minimize heat loss.
• Loading: Front-loading design, often with vertical or swing doors, allowing easy manual or specialized material handling (e.g., forklift).
• Heating Source: Primarily electrical resistance elements (silicon carbide or molybdenum disilicide) or gas-fired radiant tubes.
• Temperature Control: Programmable PID controllers for precise temperature management and uniformity, frequently meeting AMS-2750 standards.
• An industrial box furnace is a versatile, front-loading batch chamber device used for high-temperature thermal processing like annealing, hardening, and tempering. It features a rigid steel shell, high-density fiber or refractory brick insulation, and programmable PID temperature controllers.Key Technical SpecificationsOperating Temperature: Typically ranges from 600C to 1200C (specialized models reach up to 1700C1800C).Heating Elements: Uses resistive wire, silicon carbide (SiC) rods, or molybdenum disilicide (MoSi) depending on thermal requirements.Power Supply: Operates on standard industrial voltages such as 415 V / 440 V, 50 Hz.Chamber Material: Constructed with vacuum-formed ceramic fiber or high-alumina ceramic refractory bricks.Door Configuration: Available in manual horizontal swing or automatic vertical lift options
